With the new LE5 gas filter, WITT is expanding its portfolio of filters with another high-performance model for inline installation. The 2" filter is designed for oxygen in accordance with EIGA, AIGA and CGA and reliably removes mechanical impurities and condensate from pipelines. Downstream equipment is protected, process performance is increased and maintenance costs are minimised.
Maximum performance with minimal pressure loss
With a filter fineness of 15 mm and a remarkably low pressure drop, the LE5 impresses even in demanding applications. Despite its compact size, its flow-optimised design allows very high flow rates, e.g. 760 Nm3/h O? at 30 bar inlet pressure, with only 50 mbar pressure loss.
In addition, the WITT filter complies with the maximum velocities for oxygen prescribed by the European Industrial Gases Association (EIGA), the Asia Industrial Gases Association (AIGA) and the US Compressed Gas Association (CGA) - a crucial safety factor in oxygen lines. These harmonised standards, defined by the industrial gas producers, define globally applicable standards for the safe handling of oxygen.
Even in industrial applications with 6.0 grade purity gases, fine particles and even condensates can occur. Effective separation by the LE5 gas filter extends the service life and maintenance intervals of downstream components, and significantly reduces operating and downtime costs.
Easy to maintain thanks to clever design
Its compact design makes installation straightforward. The LE5 is designed so that filter elements can be changed while installed, and condensates can be easily removed via an integrated condensate drain. This significantly reduces downtime and saves time and money.
Suitable for oxygen - can be used for many technical gases

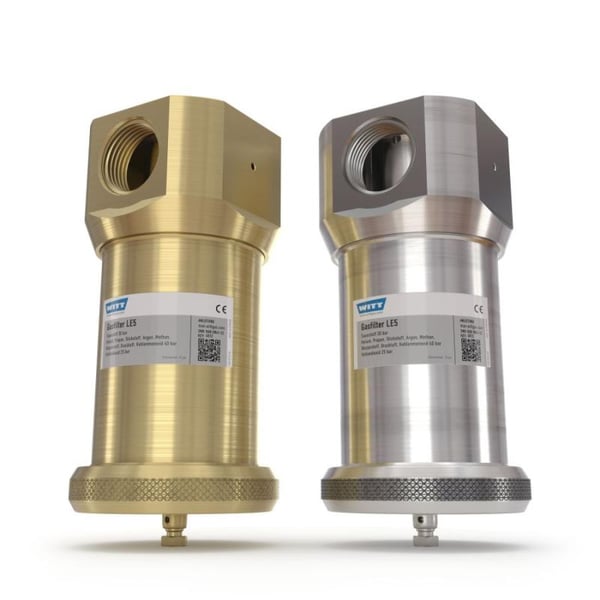

The LE5 is available in brass or stainless steel housings, each with a bronze filter insert. It can be used for numerous technical gases, including oxygen, hydrogen, nitrogen, argon, helium, compressed air, CO?, natural gas, liquefied petroleum gas and others. The maximum operating pressure is 16-40 bar, depending on the type of gas. In addition to 2" female threads, flange connections are also available on request.
Perfect in combination with dome pressure regulators

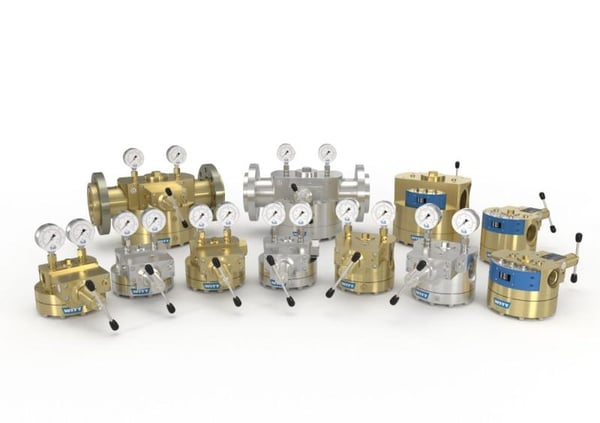

The LE5 reaches its full potential when combined with a WITT 757LE/S dome pressure regulator set. The gas filter provides optimum protection for the regulator against contamination, ensuring maximum control stability and a long, trouble-free service life.
Tested safety
Each LE5 is carefully checked before delivery. The filter has a CE mark in accordance with the Pressure Equipment Directive 2014/68/EU and is designed for O? in accordance with EIGA 13/20, CGA G 4.4 and AIGA 021/20 Oxygen Pipeline and Piping Systems.
https://www.wittgas.com/products/gas-safety-equipment/gas-filters/le5/
WITT-Gasetechnik GmbH & Co KG
Salinger Feld 4-8
58454 Witten
Germany
https://www.wittgas.com
Herr Alexander Kampschulte
023028901147
Quality and safety for over 80 years
WITT-Gasetechnik is a manufacturer of gas handling products that meet the highest quality standards. It all began around 80 years ago with flashback arrestors for welding and cutting.
Facts & Figures
Founded in 1945
Third-generation family-owned business
Approx. 200 employees
Headquarters in Witten, Germany
Global network of branches and partners
Customers in more than 100 countries
Products 'Made in Germany'
Comprehensive quality management
Today, WITT offers a complete product range for safety in the use of gases. This includes gas mixers, gas analysis and metering devices, as well as leak testing systems. WITT has thus evolved from a two-man operation into a modern company and global market leader.
WITT's headquarters are located in Witten, Germany. The company generates well over half of its revenue through exports. Through subsidiaries and sales partners, this medium-sized family-owned business is present on every continent. The needs and wishes of our customers are at the heart of everything we do. We are flexible, respond quickly, and offer the best possible service. In doing so, we maintain long-term partnerships with our customers and suppliers based on fairness. As an internationally active provider, we serve our business partners worldwide and are open to all cultures.
